Non-insulated solid tinned copper bus bars are made of T2 copper, they can be customized in different shapes and sizes. 99.9% copper content are high conductivity.The copper bus bars are widely used on electrical and new energy vehicles.
Square Edge Non-insulated Tinned Copper Busbar
Details:
Material: T2 Copper with 99.9% Copper Content
Electrical Conductivity: 58.0×10 (100% IACS standard)
Size: OEM/ODM Service
Volume Resistivity: ρ20° 0.01724 Ω?mm/m
Test: Conductivity Testing, Temperature Rise Testing, Bending Testing etc
Surface Plating: 3-12um tin, nickel or silver according to busbar's size
Load Voltage: 220 V to 10 KV according to size

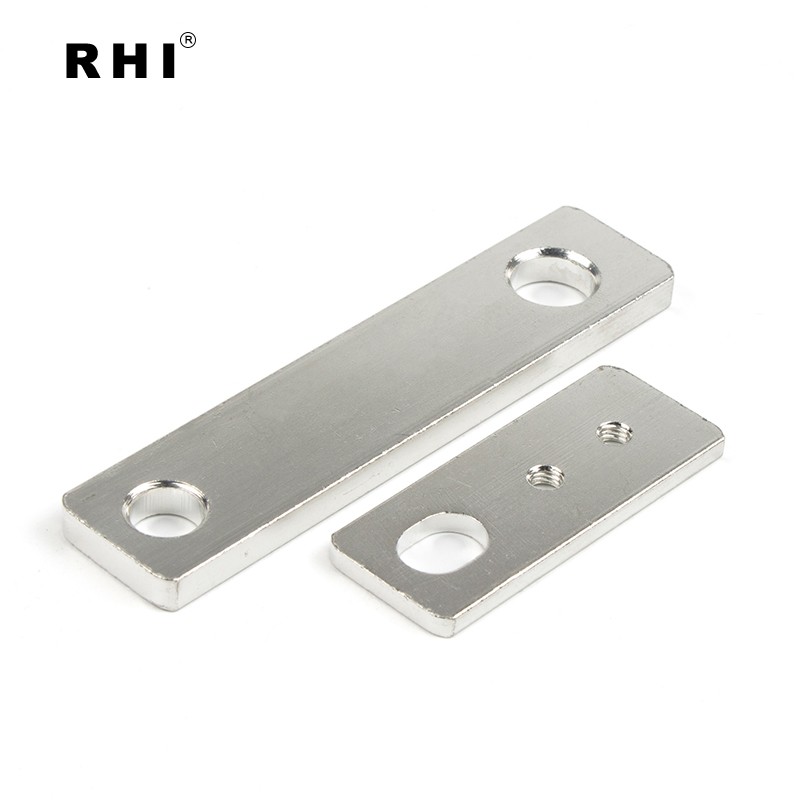

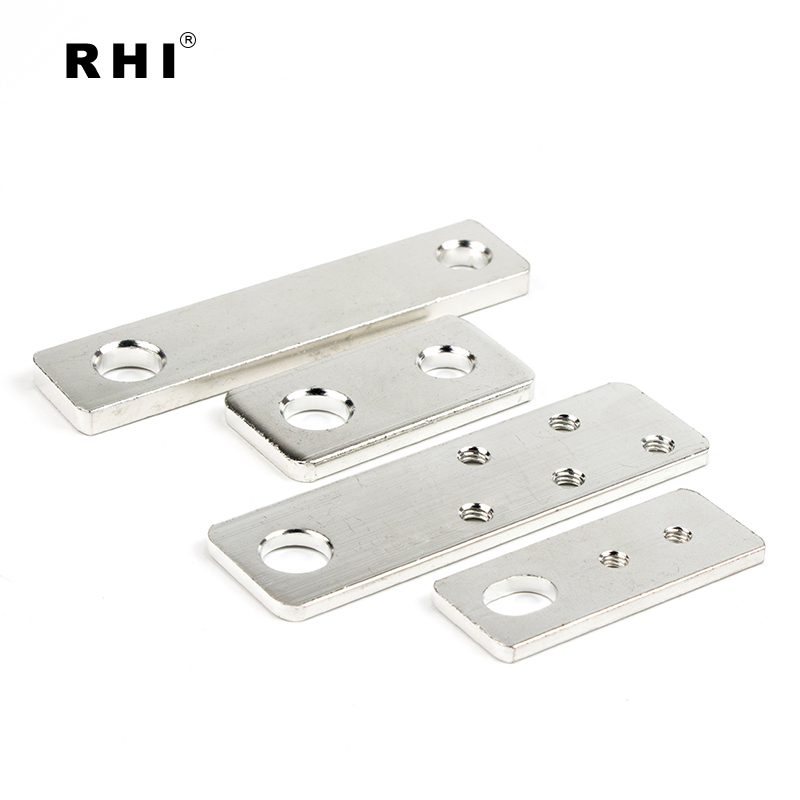

Photo Show:
Busbar Types and Covers Kits :
| Nickel Plated Busbar | Bare Copper Busbar | Bending Copper Busbar |
 |  |  |
| Insulated Busbar with Sleeving | Insulated Busbar with Dipping | Insulated Busbar with Coating |
 |  |  |
| Jointed Type Bus Bar Covers | Single Type Busbar Cover | Buckle Busbar Covers |
 |  |  |
Bus Bar Drawing :
All sizes can be customized. Just send us your drawings, such as PDF, JPEG, PNG,JPG etc.
We will quote for you in 1-2 working days !
Technics Supports & Usage:
| Techinics Abilities | Cutting, Punching, Twisting, Bending, Plating, Riveting,Dipping, Coating, Welding, Stamping,Tapping, Brazing, Drilling, Milling, Sawing etc |
| Plating Optional | Nickel Plating |
| Insulation Type | Epoxy Coated PVC Dipping Coated Heat Shrink Sleeves Adsorption |
| Hole Shape | Round Hole, Oval-shaped or Others |
| Edge Shape | Full Round Edge, Semicircle, Square Corner |
| Usage | 1)New Energy Vehicles 2)Battery Packs; 3)Power Supply Room; 4)Power Distribution Equipments; 5)Switchboards; 6)Panel Boards; 7)Low and Medium Voltage Switchgear; 8) Electric Bus, High Speed Train, 9)High Current & Control Equipment; 10)Busway Systems etc. |
Busbar Technics Shows:
Usage Show:
Our Advantages:
Strong Manufacturer: We have 6000 m2 standard workshop to assure the stability of busbars
